40 Out of Step
40 OUT OF STEP
Low E4=Y

0.45 is an arbittrary pick up point
taken at 45% or nominal Voltage

\[V_{T}=V_{nom}*0.45 \]
\[I_{T}=\frac{V_{T}}{D40Z1 -40X1D} \]

Delta:

\[V_{A}= \frac{ V_{T} }{ \sqrt{3} } \]

WYE:

\[V_{A}= \frac{ V_{T} }{ 1 } \]
\[V_{A}=(V_{T} < 0), V_{A}=(V_{T} < 0), V_{A}=(V_{T} < 240) \]

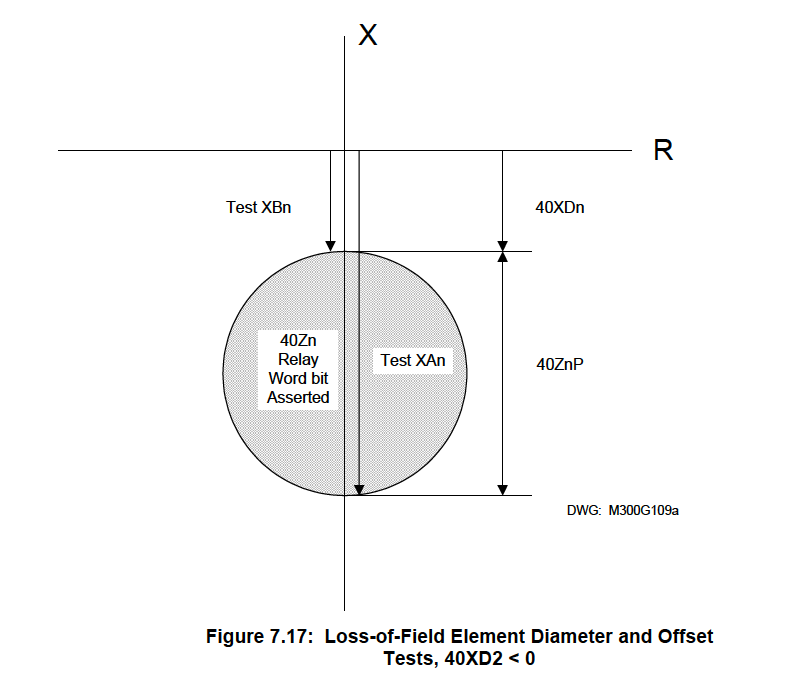

TTR-test-diagram

Nominal Values

  1. Vnom: 118.9V
  2. Inom: 3.9A
  3. MTA: 270

Zone 1 Settings

  1. 40Z1P: 16
  2. 40XD1: 1.6
  3. 40ZD1: 0.1

Zone 2 Settings

  1. 40Z2P: 16
  2. 40XD2: 1.6
  3. 40ZD2: 0.1

40 OUT OF STEP
Low E4=Y

0.45 is an arbittrary pick up point
taken at 45% or nominal Voltage

\[V_{T}=V_{nom}*0.45 \]
\[V_{T}=V_{nom}*0.45 \]
\[I_{T}=\frac{V_{T}}{D40Z1 -40X1D} \]

Delta:

\[V_{A}= \frac{ V_{T} }{ \sqrt{3} } \]

WYE:

\[V_{A}= \frac{ V_{T} }{ 1 } \]
\[V_{A}=(V_{T} < 0), V_{A}=(V_{T} < 0), V_{A}=(V_{T} < 240) \]
TTR-test-diagram

Nominal Values

  1. Vnom: 118.9V
  2. Inom: 3.9A
  3. MTA: 270

Zone 1 Settings

  1. 40Z1P: 16
  2. 40XD1: 1.6
  3. 40ZD1: 0.1

Zone 2 Settings

  1. 40Z2P: 16
  2. 40XD2: 1.6
  3. 40ZD2: 0.1


Input Values
Vnom
Inom
MTA
40Z1P
40XD1
40Z1D
40Z2P
40XD2
40Z2D
Output Values
Zone 1
Angle Voltage Current Impedance
270
